Product Description
The 080 has been especially designed to carry heavy loads in which a low over-all height and wide tread wheel are essential ingredients. Construction is of heavy gauge, cold-rolled steel, double ball bearing design, embossed for additional strength and style.
Applications:
For equipment in the range of 1500 – 5000 lbs. Large wheel selection allows for a variety of general applications. Especially suited for rugged conditions.
Stem model available – consult factory.
Engineering Data:
• .225 top plate.
• 5⁄8” hydraulically upset kingpin.
• One-piece .149 wrap-around bracket staked to .165 top cup.
• .149 bottom cup.
• Case hardened.
• 1⁄2” axle.
• Zinc plated.
• Lubrication fittings.
Companion “081” Rigid:
.149 embossed legs welded to a .225 top plate.

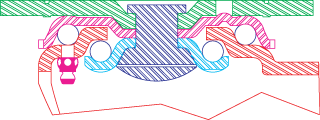

Raceway Construction:
