SCAFFOLD CASTERS '053 SK' LIGHTER SERIES
|
|
|
|
|
|
|
|
|
|
|
|
WITH POSITIVE BRAKING ACTION!
|
|
|
|
|
|
|
|
|
|
|
Truly economical, but strong. This janitorial scaffolding caster series has been designed for those light duty applications, in which both strength and economy are important considerations. Both ball bearing raceways are heat-treated for long service. Press the handle "Down" and both the swivel and wheel are securely locked. Lift "Up" and you're ready to roll freely. Nut and bolt axles render the wheel replaceable. Zinc plated.
|
|
|
|
|
|
|
|
|
|
|
|
1. Your choice of stem sizes (See Chart Below).
2. Double ball bearing swivel raceways, heat-treated.
3. Embossed shoe brake engages notched top plate and wheel surface simultaneously.
4. Self lubricating bearings. Zerk axles are available with Miraflex, Miratuff wheels.
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
WARNING
DO NOT RIDE ROLLING TOWERS
Check that caster is securely locked before climbing scaffolding.
Do not attempt to use if caster is faulty or has not been maintained |
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

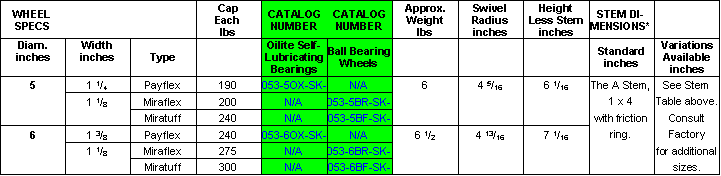

Select any catalog number below for a quote |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

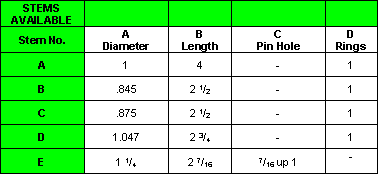

*When ordering, be sure to specify SUFFIX STEM LETTER, as per Stem Table above, i.e., Model 053-5OX-SK-A (Standard Stem) or Model 053-6BR-SK-B, which is described in detail in the above stem table. If no particular Stem is specified, the standard stem A will be automatically furnished.
|
|
|
|
|
|
|
