DOUBLE PEDAL DESIGN
This superb floor lock is unmatched in design and performance, and is adaptable to all types of portable equipment. The double pedals will not allow the operator to place his foot under the load. Large steel disc has non-marking rubber pad for non-slip floor contact. All steel construction eliminates maintenance. Electro-plated finish.

Cut-away side view illustrates
compression and retraction springs.

HOW TO OPERATE
Simply press down on the larger pedal to set positive locking force of 90 to 120 lbs. against the floor.
Press down on the release pedal and spring quickly returns lock to non-operating position.
Both pedals are out in front for safety and ease of operation.

*Other sizes and Mounting Plates can be fabricated. Consult Factory.

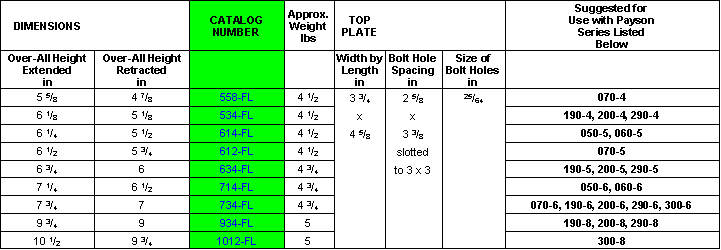

NOTE: Select Floor Lock with extended height slightly greater (1/8 to 3/8) than associated caster over-all height.
